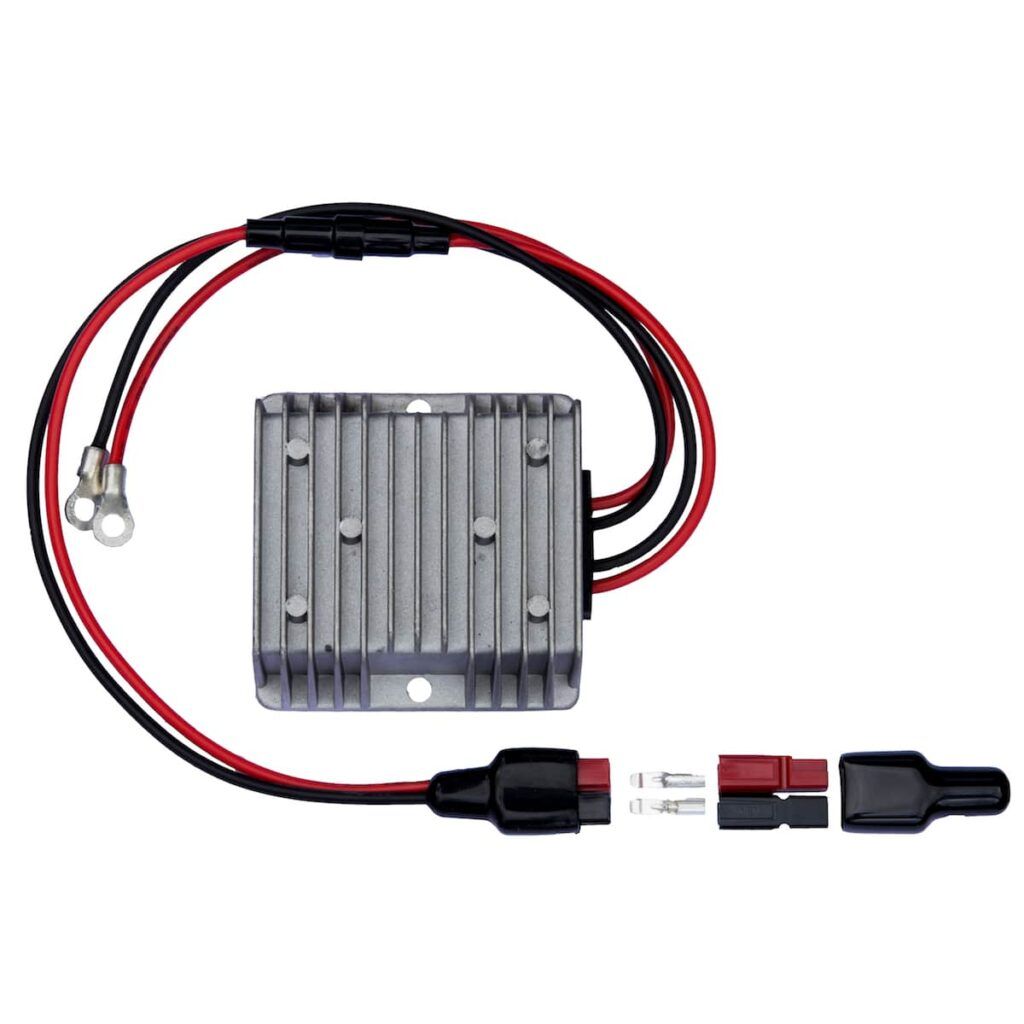

12V DC Stabilizer 3A

€59.50

The 12V DC Stabilizer 3A converts the voltage of all Rebelcell 12V batteries to a stable 12V output voltage. This enables you to use your Rebelcell battery with (electronic) equipment that requires a stable 12V output or has a different operating voltage range than your battery. Using the Stabilizer can increase the runtime and ensure trouble-free operation of your equipment.

Note: This model stabilizer (12V3A) can only be used with equipment that have a power consumption of lower than 3A! Check in our knowledge base how much power your equipment uses or check the manual. Does your equipment use 3A or more? Then the Stabilizer 12V9A is the suitable option.

Application: depth sounders, LED lighting, camera equipment, GPS navigation equipment

Waterproof: filled up with epoxy resin, IP65 waterproof, can be used outdoors in wet surroundings, like a fishing boat or kayak.

Built-in abuse protection: switches off automatically in case of short circuit, high temperature, high voltage and deep discharge. With integrated 10A fuse in + output wire to protect your equipment.

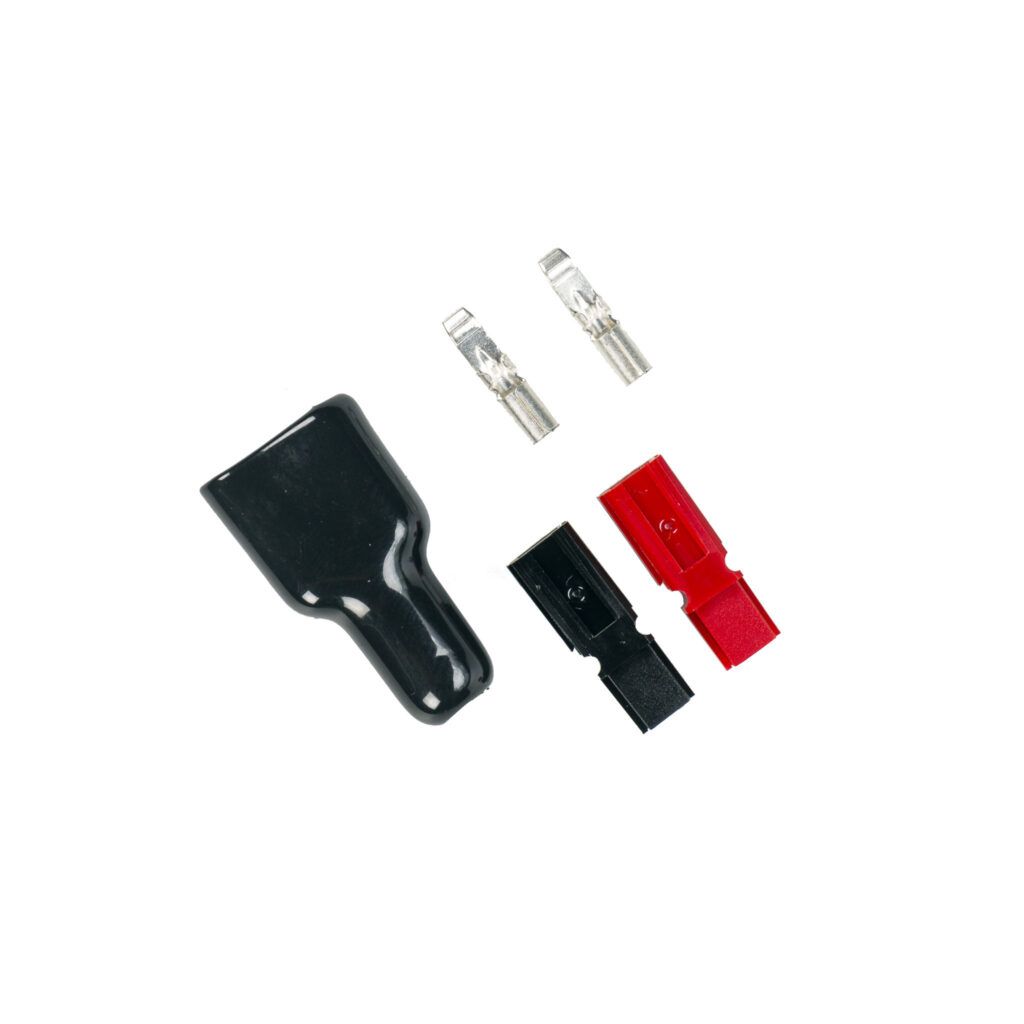

Included: 12V DC Stabiliser 3A, 1x Anen PA-45 connector

In stock

Easy connection M8 connector for easy connection to the battery. 1 click connection via ANEN PA-45 connector to your 12V equipment.

Waterproof filled up with epoxy resin, IP65 waterproof, can be used outdoors in wet surroundings, like a fishing boat or kayak.

Built-in abuse protection: switches off automatically in case of short circuit, high temperature, high voltage and deep discharge. With integrated 3A fuse in + output wire to protect your equipment.

Warranty: 2 years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

1Only use with Rebelcell 12V batteries with a working voltage between 9.0V and 18.0V. Use with unsuitable batteries can damage the converter. Never use if the voltage of your battery is below 9.0V. The undervoltage will cause the converter to heat up rapidly and will lead to irreversible damage to your converter.
2Pay attention to the polarity when connecting to your battery (+ wire to the + of the battery and – wire to the – of the battery). Reversing polarity may damage your converter and your equipment.
2Only connect to 12V equipment with a power consumption of less than 3A. If you connect equipment that draws more power you will damage the converter!.
3Never install or place the 12V DC Stabiliser on the battery. The 12V DC Stabiliser can become very hot and damage your battery. Fix the 12V DC Stabiliser on a metal (aluminum) plate with screws for safe use and additional heat dissipation.

Technical specifications

Type

Non-isolated DC-DC converter

Voltage in

9V-18V

Voltage out

12V DC

Power

36 W

Maximum discharge

3A continuous, 5A peak

Working temperature

-20 ℃ ~ +65 ℃

Conversion Efficiency

93%

Power Consumption

20 mA

Ripple

40 mV

Wiring

Input (to battery): 1 x 20 cm with M8 tongue connector

Output (to equipment): 1 x 40 cm with ANEN PA-45 connector

Material

Aluminum

Dimensions

74 x 74 x 32 mm

Weight

300 g

Protection features

Short circuit protection

Yes

High temperature protection chip

Yes

Output overcurrent protection

Yes

Output short-circuit protection

Yes

Input overvoltage protection

Yes

Built-in fuse

Yes (3A) in + DC output cable

Input reverse polarity protection

Output reverse polarity protection

Yes

Certification and warranty

Security class (IEC 529)

IP65

CE certificate

Yes

Warranty

2 years

Product code

OM121236WAL

Barcode

7106623688021

EAN

8720964630113

HS code (International / EU)

850440 / 85044085
