On this page you will find advice on which Rebelcell battery is best for different Simrad fish finders. In combination with an AV line battery, you can optionally choose the DC stabilizer for a longer runtime. For each model we give two popular options. However, there are of course even more options. Look at the end of this page for a table with all batteries and all models.
Do you have several devices connected to your battery and you want to know your runtime? Download our Fish finder battery tool.

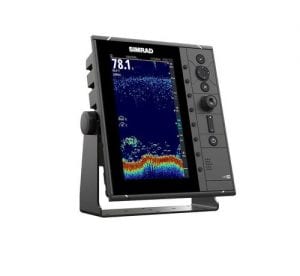

Simrad s2009
| Simrad s2009 | Battery | Runtime | Runtime with stabilizer |
|---|---|---|---|
| Option 1 | 12V07 | 4 h. | 8 h. |
| Option 2 | 12V18 | 9 h. | 17 h. |

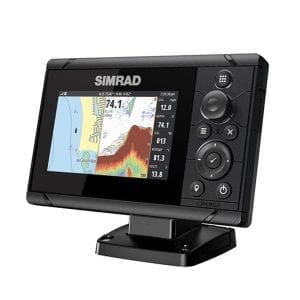

Simrad Cruise 5
| Simrad Cruise 5 | Battery | Runtime | Runtime with stabilizer |
|---|---|---|---|
| Option 1 | 12V07 | 7 h. | 7 h. |
| Option 2 | 12V18 | 15 h. | 16 h. |
Simrad Cruise 7
| Simrad Cruise 7 | Battery | Runtime | Runtime with stabilizer |
|---|---|---|---|
| Option 1 | 12V18 | 12 h. | 12 h. |
| Option 2 | 12V35 | 25 h. | 26 h. |

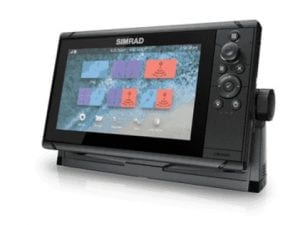

Simrad Cruise 9
| Simrad Cruise 9 | Battery | Runtime | Runtime with stabilizer |
|---|---|---|---|
| Option 1 | 12V18 | 10 h. | 10 h. |
| Option 2 | 12V35 | 21 h. | 22 h. |
Simrad GO XSE 5
| Simrad Go XSE 5 | Battery | Runtime | Runtime with stabilizer |
|---|---|---|---|
| Option 1 | 12V07 | 7 h. | 7 h. |
| Option 2 | 12V18 | 15 h. | 16 h. |

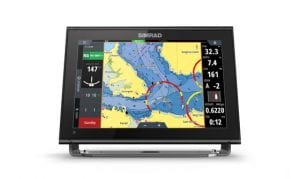

Simrad GO XSE 12
| Simrad Go XSE 12 | Battery | Runtime | Runtime with stabilizer |
|---|---|---|---|
| Option 1 | 12V18 | 13 h. | 13 h. |
| Option 2 | 12V35 | 20 h. | 20 h. |
Simrad NSS EVO3 9
| NSS EVO3 9 | Batteru | Runtime | Runtime with stabilizer |
|---|---|---|---|
| Option 1 | 12V18 | 8 h. | 8 h. |
| Option 2 | 12V35 | 17 h. | 18 h. |

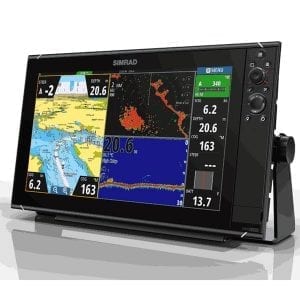

Simrad NSS EVO3 16
| NSS EVO3 16 | Battery | Runtime | Runtime with stabilizer |
|---|---|---|---|
| Option 1 | 12V35 | 8 h. | 8 h. |
| Option 2 | 12V50 AV | 17 h. | 18 h. |
All Simrad models:
| Model | Voltage range min | Voltage range Max | Amp (A) | Power in Watt (12V) | Suitable Lithium battery | Voltage range battery min | Voltage range battery max | Battery capacity in Wh | V gets below minimum at (%) | Runtime without stabilizer in hours | Runtime with stabilizer in hours | Stabilizer necessary or recommended? |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Simrad S2009 | 10,8 V. | 31,2 V. | 0,9 A | 11 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 50% | 4 h. | 8 h. | Recommended |
| Simrad S2009 | 10,8 V. | 31,2 V. | 0,9 A | 11 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 50% | 9 h. | 17 h. | Recommended |
| Simrad S2009 | 10,8 V. | 31,2 V. | 0,9 A | 11 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 50% | 15 h. | 28 h. | Recommended |
| Simrad S2009 | 10,8 V. | 31,2 V. | 0,9 A | 11 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 50% | 20 h. | 37 h. | Recommended |
| Simrad S2009 | 10,8 V. | 31,2 V. | 0,9 A | 11 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 50% | 29 h. | 55 h. | Recommended |
| Simrad S2009 | 10,8 V. | 31,2 V. | 0,9 A | 11 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 50% | 38 h. | 72 h. | Recommended |
| Simrad S2009 | 10,8 V. | 31,2 V. | 0,9 A | 11 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 3% | 88 h. | 87 h. | No |
| Simrad S2009 | 10,8 V. | 31,2 V. | 0,9 A | 11 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 50% | 59 h. | 111 h. | Recommended |
| Simrad S2009 | 10,8 V. | 31,2 V. | 0,9 A | 11 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 50% | 76 h. | 145 h. | Recommended |
| Simrad S2009 | 10,8 V. | 31,2 V. | 0,9 A | 11 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 50% | 105 h. | 199 h. | Recommended |
| Simrad Cruise 5 / Go XSE 5 | 10,0 V. | 17,0 V. | 1,0 A | 12 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 7 h. | 7 h. | Recommended |
| Simrad Cruise 5 / Go XSE 5 | 10,0 V. | 17,0 V. | 1,0 A | 12 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 15 h. | 16 h. | Recommended |
| Simrad Cruise 5 / Go XSE 5 | 10,0 V. | 17,0 V. | 1,0 A | 12 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 25 h. | 26 h. | Recommended |
| Simrad Cruise 5 / Go XSE 5 | 10,0 V. | 17,0 V. | 1,0 A | 12 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 33 h. | 34 h. | Recommended |
| Simrad Cruise 5 / Go XSE 5 | 10,0 V. | 17,0 V. | 1,0 A | 12 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 49 h. | 50 h. | Recommended |
| Simrad Cruise 5 / Go XSE 5 | 10,0 V. | 17,0 V. | 1,0 A | 12 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 65 h. | 66 h. | Recommended |
| Simrad Cruise 5 / Go XSE 5 | 10,0 V. | 17,0 V. | 1,0 A | 12 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 84 h. | 79 h. | No |
| Simrad Cruise 5 / Go XSE 5 | 10,0 V. | 17,0 V. | 1,0 A | 12 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 100 h. | 102 h. | Recommended |
| Simrad Cruise 5 / Go XSE 5 | 10,0 V. | 17,0 V. | 1,0 A | 12 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 130 h. | 133 h. | Recommended |
| Simrad Cruise 5 / Go XSE 5 | 10,0 V. | 17,0 V. | 1,0 A | 12 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 177 h. | 182 h. | Recommended |
| Simrad Cruise 7 | 10,0 V. | 17,0 V. | 1,3 A | 16 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 5 h. | 5 h. | Recommended |
| Simrad Cruise 7 | 10,0 V. | 17,0 V. | 1,3 A | 16 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 12 h. | 12 h. | Recommended |
| Simrad Cruise 7 | 10,0 V. | 17,0 V. | 1,3 A | 16 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 19 h. | 19 h. | Recommended |
| Simrad Cruise 7 | 10,0 V. | 17,0 V. | 1,3 A | 16 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 25 h. | 26 h. | Recommended |
| Simrad Cruise 7 | 10,0 V. | 17,0 V. | 1,3 A | 16 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 37 h. | 38 h. | Recommended |
| Simrad Cruise 7 | 10,0 V. | 17,0 V. | 1,3 A | 16 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 48 h. | 50 h. | Recommended |
| Simrad Cruise 7 | 10,0 V. | 17,0 V. | 1,3 A | 16 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 63 h. | 59 h. | No |
| Simrad Cruise 7 | 10,0 V. | 17,0 V. | 1,3 A | 16 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 75 h. | 77 h. | Recommended |
| Simrad Cruise 7 | 10,0 V. | 17,0 V. | 1,3 A | 16 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 97 h. | 100 h. | Recommended |
| Simrad Cruise 7 | 10,0 V. | 17,0 V. | 1,3 A | 16 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 133 h. | 137 h. | Recommended |
| Simrad Cruise 9 | 10,0 V. | 17,0 V. | 1,6 A | 19 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 4 h. | 4 h. | Recommended |
| Simrad Cruise 9 | 10,0 V. | 17,0 V. | 1,6 A | 19 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 10 h. | 10 h. | Recommended |
| Simrad Cruise 9 | 10,0 V. | 17,0 V. | 1,6 A | 19 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 16 h. | 16 h. | Recommended |
| Simrad Cruise 9 | 10,0 V. | 17,0 V. | 1,6 A | 19 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 21 h. | 22 h. | Recommended |
| Simrad Cruise 9 | 10,0 V. | 17,0 V. | 1,6 A | 19 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 31 h. | 32 h. | Recommended |
| Simrad Cruise 9 | 10,0 V. | 17,0 V. | 1,6 A | 19 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 41 h. | 42 h. | Recommended |
| Simrad Cruise 9 | 10,0 V. | 17,0 V. | 1,6 A | 19 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 53 h. | 50 h. | No |
| Simrad Cruise 9 | 10,0 V. | 17,0 V. | 1,6 A | 19 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 63 h. | 65 h. | Recommended |
| Simrad Cruise 9 | 10,0 V. | 17,0 V. | 1,6 A | 19 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 82 h. | 84 h. | Recommended |
| Simrad Cruise 9 | 10,0 V. | 17,0 V. | 1,6 A | 19 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 112 h. | 115 h. | Recommended |
| Simrad Go XSE 7 / Go XSE 9 | 10,0 V. | 17,0 V. | 1,7 A | 20 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 4 h. | 4 h. | Recommended |
| Simrad Go XSE 7 / Go XSE 9 | 10,0 V. | 17,0 V. | 1,7 A | 20 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 9 h. | 9 h. | Recommended |
| Simrad Go XSE 7 / Go XSE 9 | 10,0 V. | 17,0 V. | 1,7 A | 20 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 15 h. | 15 h. | Recommended |
| Simrad Go XSE 7 / Go XSE 9 | 10,0 V. | 17,0 V. | 1,7 A | 20 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 20 h. | 21 h. | Recommended |
| Simrad Go XSE 7 / Go XSE 9 | 10,0 V. | 17,0 V. | 1,7 A | 20 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 29 h. | 30 h. | Recommended |
| Simrad Go XSE 7 / Go XSE 9 | 10,0 V. | 17,0 V. | 1,7 A | 20 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 39 h. | 40 h. | Recommended |
| Simrad Go XSE 7 / Go XSE 9 | 10,0 V. | 17,0 V. | 1,7 A | 20 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 50 h. | 48 h. | No |
| Simrad Go XSE 7 / Go XSE 9 | 10,0 V. | 17,0 V. | 1,7 A | 20 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 60 h. | 61 h. | Recommended |
| Simrad Go XSE 7 / Go XSE 9 | 10,0 V. | 17,0 V. | 1,7 A | 20 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 78 h. | 80 h. | Recommended |
| Simrad Go XSE 7 / Go XSE 9 | 10,0 V. | 17,0 V. | 1,7 A | 20 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 106 h. | 109 h. | Recommended |
| Simrad Go XSE 12 | 10,0 V. | 17,0 V. | 2,5 A | 30 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 3 h. | 3 h. | Recommended |
| Simrad Go XSE 12 | 10,0 V. | 17,0 V. | 2,5 A | 30 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 6 h. | 6 h. | Recommended |
| Simrad Go XSE 12 | 10,0 V. | 17,0 V. | 2,5 A | 30 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 10 h. | 10 h. | Recommended |
| Simrad Go XSE 12 | 10,0 V. | 17,0 V. | 2,5 A | 30 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 13 h. | 14 h. | Recommended |
| Simrad Go XSE 12 | 10,0 V. | 17,0 V. | 2,5 A | 30 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 20 h. | 20 h. | Recommended |
| Simrad Go XSE 12 | 10,0 V. | 17,0 V. | 2,5 A | 30 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 26 h. | 26 h. | Recommended |
| Simrad Go XSE 12 | 10,0 V. | 17,0 V. | 2,5 A | 30 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 33 h. | 32 h. | No |
| Simrad Go XSE 12 | 10,0 V. | 17,0 V. | 2,5 A | 30 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 40 h. | 41 h. | Recommended |
| Simrad Go XSE 12 | 10,0 V. | 17,0 V. | 2,5 A | 30 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 52 h. | 53 h. | Recommended |
| Simrad Go XSE 12 | 10,0 V. | 17,0 V. | 2,5 A | 30 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 71 h. | 73 h. | Recommended |
| Simrad NSS EVO3 7 | 10,0 V. | 31,2 V. | 1,7 A | 20 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 4 h. | 4 h. | Recommended |
| Simrad NSS EVO3 7 | 10,0 V. | 31,2 V. | 1,7 A | 20 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 9 h. | 9 h. | Recommended |
| Simrad NSS EVO3 7 | 10,0 V. | 31,2 V. | 1,7 A | 20 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 15 h. | 15 h. | Recommended |
| Simrad NSS EVO3 7 | 10,0 V. | 31,2 V. | 1,7 A | 20 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 20 h. | 21 h. | Recommended |
| Simrad NSS EVO3 7 | 10,0 V. | 31,2 V. | 1,7 A | 20 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 29 h. | 30 h. | Recommended |
| Simrad NSS EVO3 7 | 10,0 V. | 31,2 V. | 1,7 A | 20 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 39 h. | 40 h. | Recommended |
| Simrad NSS EVO3 7 | 10,0 V. | 31,2 V. | 1,7 A | 20 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 50 h. | 48 h. | No |
| Simrad NSS EVO3 7 | 10,0 V. | 31,2 V. | 1,7 A | 20 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 60 h. | 61 h. | Recommended |
| Simrad NSS EVO3 7 | 10,0 V. | 31,2 V. | 1,7 A | 20 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 78 h. | 80 h. | Recommended |
| Simrad NSS EVO3 7 | 10,0 V. | 31,2 V. | 1,7 A | 20 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 106 h. | 109 h. | Recommended |
| Simrad NSS EVO3 9 | 10,0 V. | 31,2 V. | 1,9 A | 23 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 4 h. | 4 h. | Recommended |
| Simrad NSS EVO3 9 | 10,0 V. | 31,2 V. | 1,9 A | 23 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 8 h. | 8 h. | Recommended |
| Simrad NSS EVO3 9 | 10,0 V. | 31,2 V. | 1,9 A | 23 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 13 h. | 13 h. | Recommended |
| Simrad NSS EVO3 9 | 10,0 V. | 31,2 V. | 1,9 A | 23 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 17 h. | 18 h. | Recommended |
| Simrad NSS EVO3 9 | 10,0 V. | 31,2 V. | 1,9 A | 23 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 26 h. | 26 h. | Recommended |
| Simrad NSS EVO3 9 | 10,0 V. | 31,2 V. | 1,9 A | 23 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 34 h. | 35 h. | Recommended |
| Simrad NSS EVO3 9 | 10,0 V. | 31,2 V. | 1,9 A | 23 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 44 h. | 41 h. | No |
| Simrad NSS EVO3 9 | 10,0 V. | 31,2 V. | 1,9 A | 23 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 52 h. | 53 h. | Recommended |
| Simrad NSS EVO3 9 | 10,0 V. | 31,2 V. | 1,9 A | 23 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 68 h. | 69 h. | Recommended |
| Simrad NSS EVO3 9 | 10,0 V. | 31,2 V. | 1,9 A | 23 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 93 h. | 95 h. | Recommended |

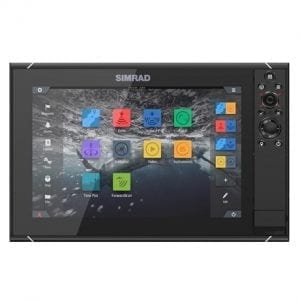

| Simrad NSS EVO3 12 / NSX 12 | 10,0 V. | 31,2 V. | 2,5 A | 30 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 3 h. | 3 h. | Recommended |
| Simrad NSS EVO3 12 / NSX 12 | 10,0 V. | 31,2 V. | 2,5 A | 30 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 6 h. | 6 h. | Recommended |
| Simrad NSS EVO3 12 / NSX 12 | 10,0 V. | 31,2 V. | 2,5 A | 30 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 10 h. | 10 h. | Recommended |
| Simrad NSS EVO3 12 / NSX 12 | 10,0 V. | 31,2 V. | 2,5 A | 30 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 13 h. | 14 h. | Recommended |
| Simrad NSS EVO3 12 / NSX 12 | 10,0 V. | 31,2 V. | 2,5 A | 30 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 20 h. | 20 h. | Recommended |
| Simrad NSS EVO3 12 / NSX 12 | 10,0 V. | 31,2 V. | 2,5 A | 30 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 26 h. | 26 h. | Recommended |
| Simrad NSS EVO3 12 / NSX 12 | 10,0 V. | 31,2 V. | 2,5 A | 30 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 33 h. | 32 h. | No |
| Simrad NSS EVO3 12 / NSX 12 | 10,0 V. | 31,2 V. | 2,5 A | 30 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 40 h. | 41 h. | Recommended |
| Simrad NSS EVO3 12 / NSX 12 | 10,0 V. | 31,2 V. | 2,5 A | 30 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 52 h. | 53 h. | Recommended |
| Simrad NSS EVO3 12 / NSX 12 | 10,0 V. | 31,2 V. | 2,5 A | 30 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 71 h. | 73 h. | Recommended |
| Simrad NSS EVO3 16 | 10,0 V. | 31,2 V. | 3,8 A | 45 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 2 h. | 2 h. | Recommended |
| Simrad NSS EVO3 16 | 10,0 V. | 31,2 V. | 3,8 A | 45 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 4 h. | 4 h. | Recommended |
| Simrad NSS EVO3 16 | 10,0 V. | 31,2 V. | 3,8 A | 45 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 7 h. | 7 h. | Recommended |
| Simrad NSS EVO3 16 | 10,0 V. | 31,2 V. | 3,8 A | 45 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 9 h. | 9 h. | Recommended |
| Simrad NSS EVO3 16 | 10,0 V. | 31,2 V. | 3,8 A | 45 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 13 h. | 13 h. | Recommended |
| Simrad NSS EVO3 16 | 10,0 V. | 31,2 V. | 3,8 A | 45 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 17 h. | 18 h. | Recommended |
| Simrad NSS EVO3 16 | 10,0 V. | 31,2 V. | 3,8 A | 45 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 22 h. | 21 h. | No |
| Simrad NSS EVO3 16 | 10,0 V. | 31,2 V. | 3,8 A | 45 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 27 h. | 27 h. | Recommended |
| Simrad NSS EVO3 16 | 10,0 V. | 31,2 V. | 3,8 A | 45 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 35 h. | 35 h. | Recommended |
| Simrad NSS EVO3 16 | 10,0 V. | 31,2 V. | 3,8 A | 45 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 47 h. | 49 h. | Recommended |
| Simrad NSS EVO3S 9 | 10,0 V. | 31,2 V. | 1,8 A | 21 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 4 h. | 4 h. | Recommended |
| Simrad NSS EVO3S 9 | 10,0 V. | 31,2 V. | 1,8 A | 21 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 9 h. | 9 h. | Recommended |
| Simrad NSS EVO3S 9 | 10,0 V. | 31,2 V. | 1,8 A | 21 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 14 h. | 15 h. | Recommended |
| Simrad NSS EVO3S 9 | 10,0 V. | 31,2 V. | 1,8 A | 21 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 19 h. | 20 h. | Recommended |
| Simrad NSS EVO3S 9 | 10,0 V. | 31,2 V. | 1,8 A | 21 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 28 h. | 29 h. | Recommended |
| Simrad NSS EVO3S 9 | 10,0 V. | 31,2 V. | 1,8 A | 21 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 37 h. | 38 h. | Recommended |
| Simrad NSS EVO3S 9 | 10,0 V. | 31,2 V. | 1,8 A | 21 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 48 h. | 45 h. | No |
| Simrad NSS EVO3S 9 | 10,0 V. | 31,2 V. | 1,8 A | 21 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 57 h. | 58 h. | Recommended |
| Simrad NSS EVO3S 9 | 10,0 V. | 31,2 V. | 1,8 A | 21 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 74 h. | 76 h. | Recommended |
| Simrad NSS EVO3S 9 | 10,0 V. | 31,2 V. | 1,8 A | 21 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 101 h. | 104 h. | Recommended |
| Simrad NSS EVO3S 12 | 10,0 V. | 31,2 V. | 2,3 A | 28 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 3 h. | 3 h. | Recommended |
| Simrad NSS EVO3S 12 | 10,0 V. | 31,2 V. | 2,3 A | 28 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 7 h. | 7 h. | Recommended |
| Simrad NSS EVO3S 12 | 10,0 V. | 31,2 V. | 2,3 A | 28 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 11 h. | 11 h. | Recommended |
| Simrad NSS EVO3S 12 | 10,0 V. | 31,2 V. | 2,3 A | 28 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 14 h. | 15 h. | Recommended |
| Simrad NSS EVO3S 12 | 10,0 V. | 31,2 V. | 2,3 A | 28 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 21 h. | 22 h. | Recommended |
| Simrad NSS EVO3S 12 | 10,0 V. | 31,2 V. | 2,3 A | 28 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 28 h. | 28 h. | Recommended |
| Simrad NSS EVO3S 12 | 10,0 V. | 31,2 V. | 2,3 A | 28 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 36 h. | 34 h. | No |
| Simrad NSS EVO3S 12 | 10,0 V. | 31,2 V. | 2,3 A | 28 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 43 h. | 44 h. | Recommended |
| Simrad NSS EVO3S 12 | 10,0 V. | 31,2 V. | 2,3 A | 28 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 56 h. | 57 h. | Recommended |
| Simrad NSS EVO3S 12 | 10,0 V. | 31,2 V. | 2,3 A | 28 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 76 h. | 78 h. | Recommended |
| Simrad NSS EVO3S 16 / NSO EVO3(S) 16 | 10,0 V. | 31,2 V. | 3,3 A | 40 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 2 h. | 2 h. | Recommended |
| Simrad NSS EVO3S 16 / NSO EVO3(S) 16 | 10,0 V. | 31,2 V. | 3,3 A | 40 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 5 h. | 5 h. | Recommended |
| Simrad NSS EVO3S 16 / NSO EVO3(S) 16 | 10,0 V. | 31,2 V. | 3,3 A | 40 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 7 h. | 8 h. | Recommended |
| Simrad NSS EVO3S 16 / NSO EVO3(S) 16 | 10,0 V. | 31,2 V. | 3,3 A | 40 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 10 h. | 10 h. | Recommended |
| Simrad NSS EVO3S 16 / NSO EVO3(S) 16 | 10,0 V. | 31,2 V. | 3,3 A | 40 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 15 h. | 15 h. | Recommended |
| Simrad NSS EVO3S 16 / NSO EVO3(S) 16 | 10,0 V. | 31,2 V. | 3,3 A | 40 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 19 h. | 20 h. | Recommended |
| Simrad NSS EVO3S 16 / NSO EVO3(S) 16 | 10,0 V. | 31,2 V. | 3,3 A | 40 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 25 h. | 24 h. | No |
| Simrad NSS EVO3S 16 / NSO EVO3(S) 16 | 10,0 V. | 31,2 V. | 3,3 A | 40 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 30 h. | 31 h. | Recommended |
| Simrad NSS EVO3S 16 / NSO EVO3(S) 16 | 10,0 V. | 31,2 V. | 3,3 A | 40 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 39 h. | 40 h. | Recommended |
| Simrad NSS EVO3S 16 / NSO EVO3(S) 16 | 10,0 V. | 31,2 V. | 3,3 A | 40 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 53 h. | 55 h. | Recommended |
| Simrad NSO EVO3(S) 19 | 10,0 V. | 31,2 V. | 4,2 A | 50 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 2 h. | 2 h. | Recommended |
| Simrad NSO EVO3(S) 19 | 10,0 V. | 31,2 V. | 4,2 A | 50 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 4 h. | 4 h. | Recommended |
| Simrad NSO EVO3(S) 19 | 10,0 V. | 31,2 V. | 4,2 A | 50 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 6 h. | 6 h. | Recommended |
| Simrad NSO EVO3(S) 19 | 10,0 V. | 31,2 V. | 4,2 A | 50 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 8 h. | 8 h. | Recommended |
| Simrad NSO EVO3(S) 19 | 10,0 V. | 31,2 V. | 4,2 A | 50 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 12 h. | 12 h. | Recommended |
| Simrad NSO EVO3(S) 19 | 10,0 V. | 31,2 V. | 4,2 A | 50 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 15 h. | 16 h. | Recommended |
| Simrad NSO EVO3(S) 19 | 10,0 V. | 31,2 V. | 4,2 A | 50 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 20 h. | 19 h. | No |
| Simrad NSO EVO3(S) 19 | 10,0 V. | 31,2 V. | 4,2 A | 50 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 24 h. | 25 h. | Recommended |
| Simrad NSO EVO3(S) 19 | 10,0 V. | 31,2 V. | 4,2 A | 50 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 31 h. | 32 h. | Recommended |
| Simrad NSO EVO3(S) 19 | 10,0 V. | 31,2 V. | 4,2 A | 50 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 43 h. | 44 h. | Recommended |
| Simrad NSO EVO3(S) 24 | 10,0 V. | 31,2 V. | 6,7 A | 80 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 1 h. | 1 h. | Recommended |
| Simrad NSO EVO3(S) 24 | 10,0 V. | 31,2 V. | 6,7 A | 80 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 2 h. | 2 h. | Recommended |
| Simrad NSO EVO3(S) 24 | 10,0 V. | 31,2 V. | 6,7 A | 80 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 4 h. | 4 h. | Recommended |
| Simrad NSO EVO3(S) 24 | 10,0 V. | 31,2 V. | 6,7 A | 80 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 5 h. | 5 h. | Recommended |
| Simrad NSO EVO3(S) 24 | 10,0 V. | 31,2 V. | 6,7 A | 80 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 7 h. | 8 h. | Recommended |
| Simrad NSO EVO3(S) 24 | 10,0 V. | 31,2 V. | 6,7 A | 80 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 10 h. | 10 h. | Recommended |
| Simrad NSO EVO3(S) 24 | 10,0 V. | 31,2 V. | 6,7 A | 80 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 13 h. | 12 h. | No |
| Simrad NSO EVO3(S) 24 | 10,0 V. | 31,2 V. | 6,7 A | 80 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 15 h. | 15 h. | Recommended |
| Simrad NSO EVO3(S) 24 | 10,0 V. | 31,2 V. | 6,7 A | 80 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 19 h. | 20 h. | Recommended |
| Simrad NSO EVO3(S) 24 | 10,0 V. | 31,2 V. | 6,7 A | 80 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 27 h. | 27 h. | Recommended |
| Simrad NSX 7 | 10,0 V. | 31,2 V. | 1,0 A | 12 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 7 h. | 7 h. | Recommended |
| Simrad NSX 7 | 10,0 V. | 31,2 V. | 1,0 A | 12 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 15 h. | 16 h. | Recommended |
| Simrad NSX 7 | 10,0 V. | 31,2 V. | 1,0 A | 12 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 25 h. | 26 h. | Recommended |
| Simrad NSX 7 | 10,0 V. | 31,2 V. | 1,0 A | 12 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 33 h. | 34 h. | Recommended |
| Simrad NSX 7 | 10,0 V. | 31,2 V. | 1,0 A | 12 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 49 h. | 50 h. | Recommended |
| Simrad NSX 7 | 10,0 V. | 31,2 V. | 1,0 A | 12 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 65 h. | 66 h. | Recommended |
| Simrad NSX 7 | 10,0 V. | 31,2 V. | 1,0 A | 12 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 84 h. | 79 h. | No |
| Simrad NSX 7 | 10,0 V. | 31,2 V. | 1,0 A | 12 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 100 h. | 102 h. | Recommended |
| Simrad NSX 7 | 10,0 V. | 31,2 V. | 1,0 A | 12 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 130 h. | 133 h. | Recommended |
| Simrad NSX 7 | 10,0 V. | 31,2 V. | 1,0 A | 12 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 177 h. | 182 h. | Recommended |
| Simrad NSX 9 | 10,0 V. | 31,2 V. | 1,6 A | 19 W | 12V07 AV | 9,0 V. | 12,6 V. | 87 Wh | 7% | 4 h. | 4 h. | Recommended |
| Simrad NSX 9 | 10,0 V. | 31,2 V. | 1,6 A | 19 W | 12V18 AV | 9,0 V. | 12,6 V. | 199 Wh | 7% | 10 h. | 10 h. | Recommended |
| Simrad NSX 9 | 10,0 V. | 31,2 V. | 1,6 A | 19 W | 12V30 AV | 9,0 V. | 12,6 V. | 323 Wh | 7% | 16 h. | 16 h. | Recommended |
| Simrad NSX 9 | 10,0 V. | 31,2 V. | 1,6 A | 19 W | 12V35 AV | 9,0 V. | 12,6 V. | 432 Wh | 7% | 21 h. | 22 h. | Recommended |
| Simrad NSX 9 | 10,0 V. | 31,2 V. | 1,6 A | 19 W | 12V50 AV | 9,0 V. | 12,6 V. | 634 Wh | 7% | 31 h. | 32 h. | Recommended |
| Simrad NSX 9 | 10,0 V. | 31,2 V. | 1,6 A | 19 W | 12V70 AV | 9,0 V. | 12,6 V. | 836 Wh | 7% | 41 h. | 42 h. | Recommended |
| Simrad NSX 9 | 10,0 V. | 31,2 V. | 1,6 A | 19 W | 12V80 PRO | 10,0 V. | 13,6 V. | 1002 Wh | 0% | 53 h. | 50 h. | No |
| Simrad NSX 9 | 10,0 V. | 31,2 V. | 1,6 A | 19 W | 12V100 AV | 9,0 V. | 12,6 V. | 1290 Wh | 7% | 63 h. | 65 h. | Recommended |
| Simrad NSX 9 | 10,0 V. | 31,2 V. | 1,6 A | 19 W | 12V140 AV | 9,0 V. | 12,6 V. | 1679 Wh | 7% | 82 h. | 84 h. | Recommended |
| Simrad NSX 9 | 10,0 V. | 31,2 V. | 1,6 A | 19 W | 12V190 AV | 9,0 V. | 12,6 V. | 2300 Wh | 7% | 112 h. | 115 h. | Recommended |
